3 SDM Series

produk

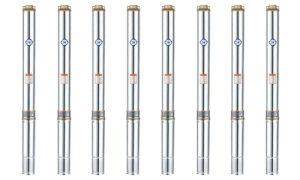

The 3 SDM series is specifically designed for wells with a diameter 3 Inch, ensuring efficient and reliable water transfer. These pumps feature a durable construction, advanced technology, and are suitable for various applications including residential, agricultural, and industrial uses, providing consistent performance and longevity. Perfect for drawing water from wells, ponds, lakes, and cisterns.

Specification

Output Diameter 1 Inch (25.4MM) to 1,2 Inch (30.48MM)
Suitable Well Diameter Minimum 3 inches (​76.2MM)
Body Material Stainless Steel
Voltage 220V
Horse Power (HP) 0.25 - 2
Impeller 8 - 31
Weight (KG) 7 KG to 20 KG
Power Range 0.18 kW to 1.5 kW

Performance

Capacity (m³/hour) 2 - 3 cubic meters per hour (m³/hour)
Head Max Up to 120 meters
Max Immersion Depth 120 meters
Sand Tolerance ≤ 0.25%
